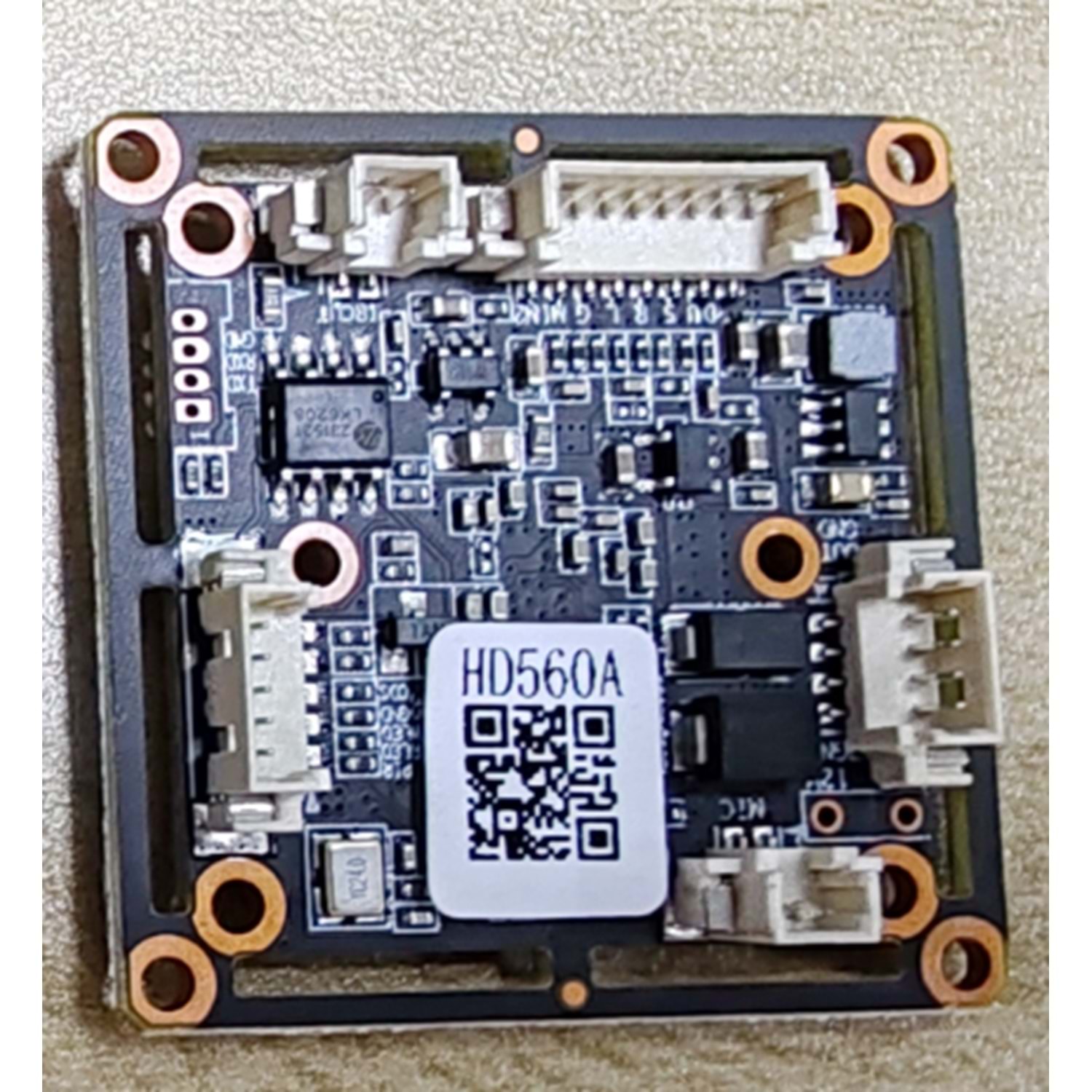

HD560A 8 MP AHD BOARD

1. Product name: AHD HD module
2. Product model: RS-HD560-A0 series 8MP module (4-IN-1)
3. 3.1, C18 8MP high-definition image sensor, AHD/TVI/CVI 8MP output, CVBS output, effective resolution up to 3840*2160;
3.2, OSD supports 11 languages, Support for white balance/gain modification/image enhancement / 2D denoise etc; 3.3. Use FH8538E DSP with OSD function (color/black and white, PAL/NTSC switch); 3.4 Double filter switch, day and night effect is clear, OSD switch a variety of day and night mode; 3.5, Support for coaxial audio transmission; 3.6 Support UTC function, support brightness/contrast/sharpness/saturation/noise reduction modification; 3.7, power supply (600W) video (2KV) double lightning protection design, OSP anti-oxidation PCB, small volume 38*38 bilateral frame design;

5?Product parameters:
Imaging device 1/2.5 C18
Image resolution
3840 (H)*2160 (V)
Effective pixels
8MP/15FPS
System
PAL/NTSC(OSD change)
Day and night mode
External control (default)/ auto/color/black and white (OSD toggle)
Signal to noise ratio
?50dB
Minimum illumination
0.2LUX
Backlight compensation(BLC)
Level is adjustable
Automatic electronic shutter(AES)
AUTO
Automatic white balance(AWB)
Level is adjustable
Switch control
OFF(DC 0V) / ON:DC 3V-8V

voltage day and night
OSD Language (11 countries)
English/simple Chinese/traditional Chinese/Russian/Spanish/French/Polish Italian/Portuguese/Japanese/Korean/Greek
Video output
AHD/TVI/CVI/CVBS
Video recordings take up space
1min?35.2MB(3.6mm lens)
Working voltage
DC12V/64mA ±6mA(Wide voltage 9V-18V)
The work environment
-20? --- 50?
