16 KANAL NVR BORD 4K XMEYE

? Support access of multiple XM smart front-end devices with human detection and face detection function.
? Support HDMI 4K,VGA 1080P HD output;
? Support ONVIF;access third party;
? Support web, CMS, center platform management software MYEYE, provide SDK development;
? Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
? Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);
? Support GB28181 protocol access tothird-party platforms.


Model NBD88X16S-KL-V3
System Main processor XM8536E
Operating System Embedded Linux
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operator interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/2/4/6/8/9/16
Video Video input (IP) 16*4K(Access bandwidth 60Mbps)
Video compression H.265AI/H.265+(compatible H.265/H.264)
Display quality Max:4K
Playback quality 4K/5M/4M/3M/1080P
Decode 1ch4k/2ch5M/2ch4M/3ch3M/5ch1080P
VR support
human shape / Face Support(depend on camera)
Audio Audio compression G.711A
Intercom support
Record
&
playback Recording mode Manual>Alarm>Dynamic Detection>Timing
Local payback 1ch4k/2ch5M/2ch4M/3ch3M/5ch1080P
Search mode Search by Time/Calendar/Event/Channel/Face
Record storage HDD?Network
Backup mode Network backup, USB hard disk, USB burner, SATA burner

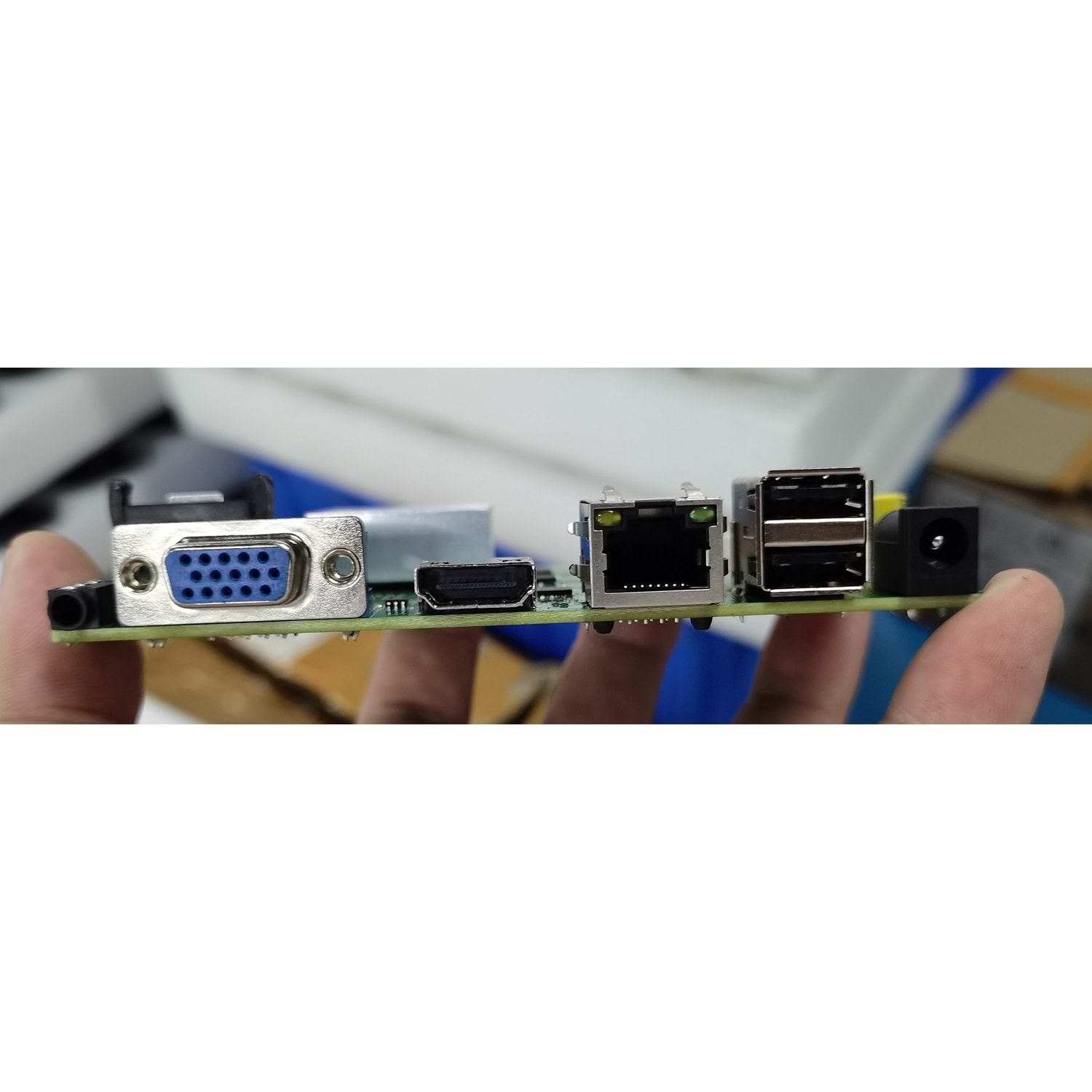

External interface Video output 1ch VGA,1ch HDMI HD output
Audio I/O 1/1(3.5mm)
Alarm I/O 0/0
Network interface 1*RJ45 10M/100M Adaptive Ethernet port
USB interface 2*USB2.0 ports(one USB extension interface is reserved)

HDD 1* SATA(Up to 14TB for each disk)

ESATA No
Serial interface No
Other ONVIF Support
Power supply 12V/2A
Power Consumption <10W(Without HDD)
Work environment Temperature:0? -55? , Humidity:10%-90%RH , Atm:86kpa-106kp
Dimension 118mm*46mm
Weight A total of about 63g







sign Function Pin number Interface Description
J4 4PIN front panel interface 1 FRONT_Y3/+3.3
2 FRONT_X1/GND
3 ALARM
4 REC
J3 Front panel interface without MCU 1 +3.3
2 GND
3 FRONT_IR
4 FRONT_Y2
5 FRONT_Y1
6 FRONT_X2
7 FRONT_Y3
8 FRONT_X1
9 ALARM
10 REC
CN3 Sata data
J5 SATA power extension socket 1 +5
2/3 GND
4 +12
J2 433 1 GND
2 433_UART_TX
3 433_UART_RX
4 +3.3
5 433_CTRL
CN2 Fan seat 1 +12
2 GND
JT1 12V input 1 +12
2/3 GND
J11 2*USB
CN4 USB Extension interface 1 +5
2 DM_P0
3 DP_P0
4 GND
J13,J14 RJ45
J9,J10 POE switch expansion interface (compatible)
J16 HDMI
J12,J17 VGA
J8 spaker interface
J15 3.5mm Audio In/Output
BT1,J6 Battery holder
