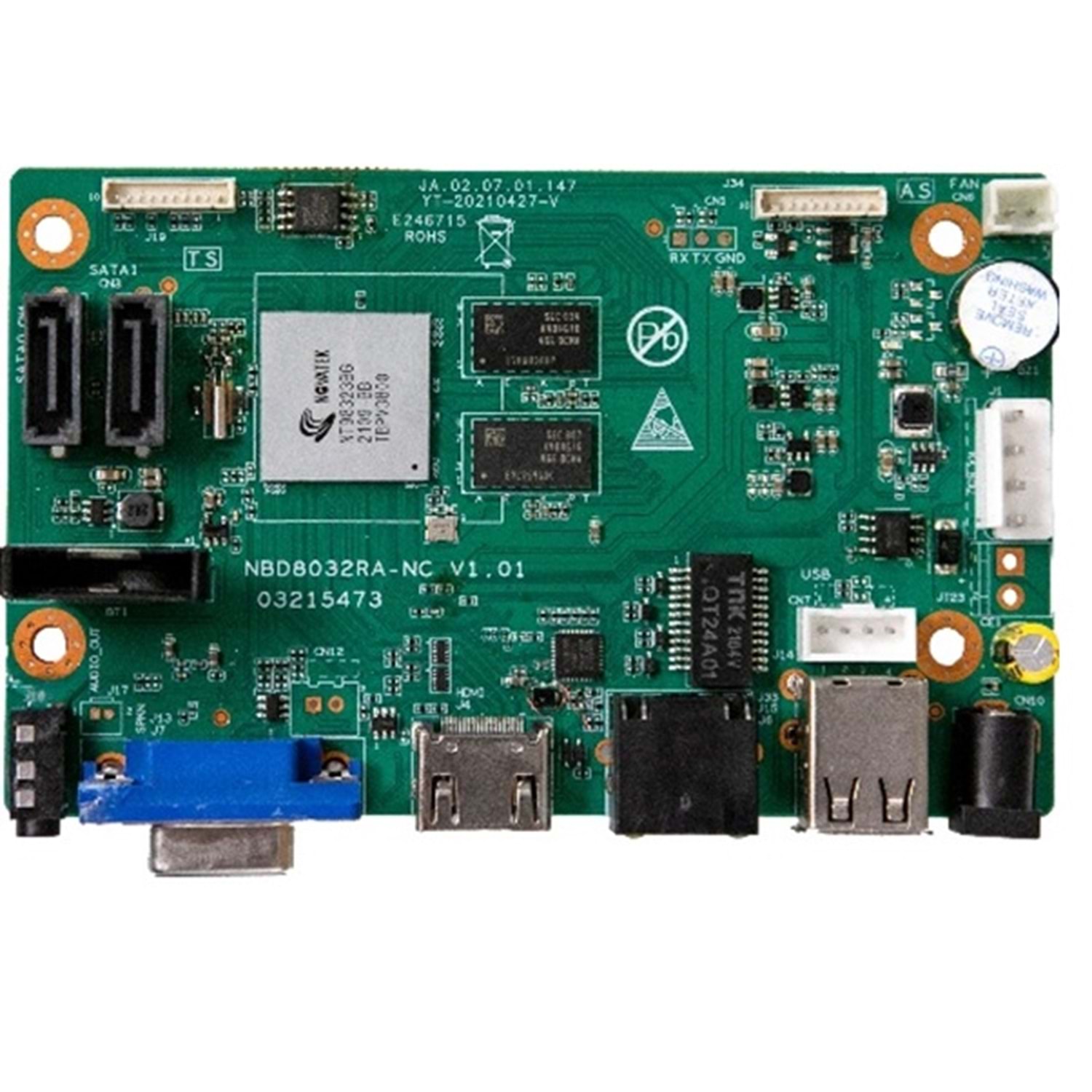

32 KANAL NVR BORD XMEYE

? Support HDMI 4K output, VGA HD output;
? Support ONVIF access third party;
? Support web, CMS, center platform management software MYEYE, provide SDK development;
? Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
? Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);
? Support GB28181 protocol access to third-party platforms.


Model NBD80N32RA-KL
System Main processor NT98323
Operating System Embedded Linux
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operator interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/2/4/6/8/9/16/25/32
Video Video input (IP) 32*4K
Video compression H.265AI/H.265+(compatible H.265/H.264)
Display quality Max:4K
Playback quality 4K/5M/4M/3M/1080P
VR Unsupport
Motion detection Support(depend on camera)
Audio Audio compression G.711A
Intercom support
Record
&
playback Recording mode Manual>Alarm>Dynamic Detection>Timing
Local payback(real-time+Un real-time) 4K(1+2)5M(2+3)/4M(2+5)/3M(3+6)/1080P(5+9)
Search mode Search by Time/Calendar/Event/Channel/Face
Record storage HDD?Network
Backup mode Network backup, USB hard disk, USB burner, SATA burner
External interface Video output 1ch VGA,1ch HDMI HD output
Audio I/O 1/1(3.5MM)
Alarm I/O 0/0
Network interface 1*RJ45 10M/100M/1000M Adaptive Ethernet port
USB interface 2*USB2.0 ports

HDD 2 SATA(Up to 14TB for each disk)

ESATA No
Serial interface No
Other ONVIF Support
Power supply 12V/4A
Power Consumption <10W(Without HDD)
Work environment Temperature:0? -55? , Humidity:10%-90%RH , Atm:86kpa-106kp
Dimension 118mm*69.5mm
Weight A total of about 63g


























Sign Function Interface Description
J19 Expansion socket without MCU front panel(1.25*10P) 1:+3.3 2:GND 3:IR 4:COL2
5:COL1 6:ROW2 7:COL3 8:ROW1
9:ALARM 10:REC
J34 Expansion base with MCU front panel(1.25*10P) 1:+5 2:GND 3:+5_STB 4:GND
5:NC 6:NC 7:RXD_FRONT 8:TX_FRONT
9:PWR_S 10:GND
CN4 SATA
CN3 SATA
J16 Audio 3.5mm input and output interface
J7 VGA
J4 HDMI
J15 RJ45
J33 Reserved POE Extension interface
J14 2*USB
CN7 USB Extension interface
CN10 12V input
J1 Hard disk power socket 1:+5 2:GND 3:GND 4:+12
CN6 Fan power holder 1:+12 2:GND
